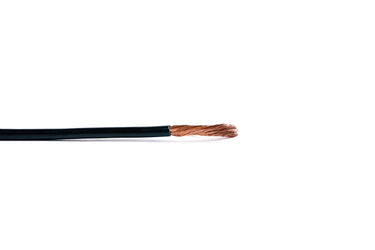

A 0.50 mm² or (23/.0076") single-core flexible cable is a type of electrical cable characterized by its construction and specifications. Here is a detailed description: Specifications: Conductor Cross-Sectional Area: 0.50 mm² Stranding: 23 strands of 0.0076 inches diameter each Core: Single-core Construction: Conductor Material: Typically made of stranded copper wires for enhanced flexibility and conductivity. Insulation: Usually insulated with a high-quality PVC (Polyvinyl Chloride) or similar material, providing electrical insulation and protection against mechanical damage. Features: Flexibility: The cable is designed to be highly flexible, making it suitable for applications where the cable needs to be bent or moved frequently without breaking. Durability: Resistant to wear and tear, suitable for use in environments that require a durable yet flexible cable. Temperature Rating: Often rated for operation in a range of temperatures, typically from -5°C to +70°C, depending on the insulation material. Voltage Rating: Generally rated for low voltage applications, commonly up to 300/500V.

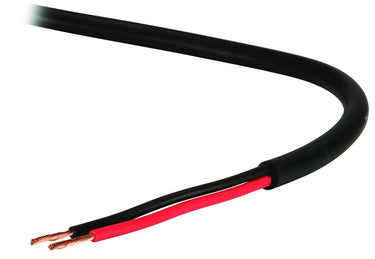

Two core flex: This type of cable is used to connect small appliances which are double insulated and need no earth. The cable only has two cores being live and neutral. As this is flex cable it will be of circular shape with an outer sheath and two-colour coded.   WEIGHT 6kg/90 meters SELECT COLOR White, Black,  LENGTH 30, 45, 90 meters. NO. OF STRANDS 40 STRAND DIAMETER .007 Inch CONDUCTOR TYPE Copper  INSULATION TYPE Poly Vinyl Chloride (PVC) STANDARD BSS-6004 Equivalent (23/.0076 )BSS-2004 in Pakistan TEMPERATURE RATING -20C˚ to 70C˚ DC RESISTANCE 8.06 ohm/km MATERIAL PVC,  VOLTAGE RATING 250/450V AMPERE RATING 11 Amps

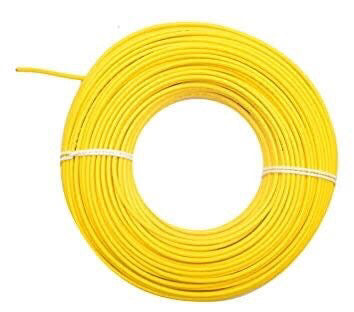

WHY IS IT IMPORTANT TO HAVE EARTHING? The connection between electrical appliances and devices with the earth plate or electrode through a thick wire of low resistance to provide safety is known as ‘Earthing’ or Grounding. Earthing System or Grounding System in an electrical network work as a safety measure to protect human life as well as equipment, the main objective of the Earthing system is to provide an alternative path for dangerous currents to flow so that accidents due to electric shock and damage to the equipment can be avoided 1/.044 Single Core Solid Earthing Cable Why should you have an Earthing System?This question generally arises when you have all the right equipment, wires, sockets and well maintained electrical devices. Yet, why is there a need for an Earthing system? The answer is very simple… Earthing system makes the equipment electrically shock free and gives you a safe place to stay.

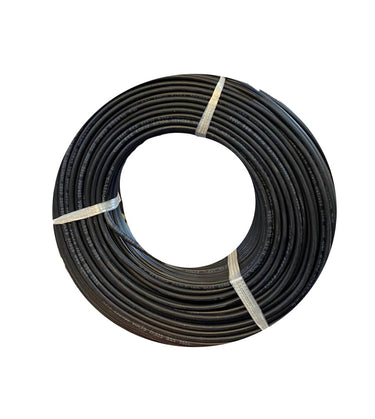

"Introducing our 10mm² Single Core DC Solar Copper Cable, designed specifically for solar energy applications. Crafted with high-quality copper, this cable ensures efficient power transmission and minimal energy loss, maximizing the performance of your solar system. With a single core design, it's ideal for connecting solar panels to inverters, batteries, and other components, streamlining your installation process. Our cable is built to withstand harsh outdoor conditions, featuring UV-resistant insulation and durable construction for long-term reliability. Trust our 10mm² Single Core DC Solar Copper Cable to power your solar projects with efficiency and durability."

Application: Especially for the connection between Solar power generation device connector and connection of inverter, Under the condition of different climate outdoor installation, and can adapt to the dry and wet indoor working environment.

Meet our 16mm² Single Core DC Solar Flexible Copper Cable, crafted for optimal solar energy applications. With high-grade copper and flexible design, it ensures efficient power transmission and easy installation. Built to withstand outdoor elements, it's your reliable choice for connecting solar panels to essential components.

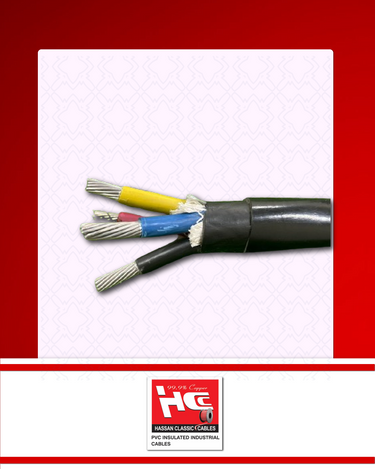

The 19/.052" (25 mm²) 4-core aluminum/standard cable offers a reliable and cost-effective solution for diverse power distribution applications. With its high-quality construction, adherence to industry standards, and versatile performance characteristics, this cable ensures efficient and safe operation in various environments, contributing to the stability and reliability of electrical systems.

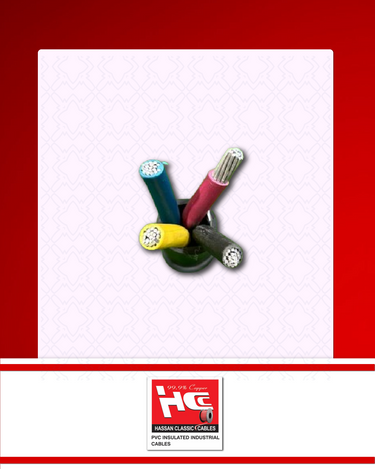

The 19/.064" (35 mm²) 4-core cable is a high-performance electrical conductor designed for demanding power distribution applications. Crafted with precision engineering and superior materials, this cable ensures reliable performance and durability in diverse environments.

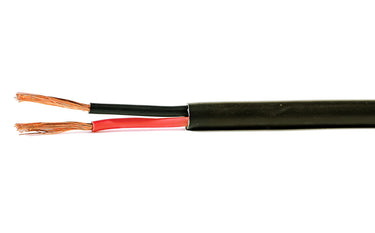

Two core flex: This type of cable is used to connect small appliances which are double insulated and need no earth. The cable only has two cores being live and neutral. As this is flex cable it will be of circular shape with an outer sheath and two-colour coded. WEIGHT 13kg/90 meters SELECT COLOR  Black,  LENGTH 30, 45, 90 meters. NO. OF STRANDS 100 STRAND DIAMETER .007 Inch CONDUCTOR TYPE Copper  INSULATION TYPE Poly Vinyl Chloride (PVC) STANDARD BSS-6004 Equivalent (23/.0076 )BSS-2004 in Pakistan TEMPERATURE RATING -20C˚ to 70C˚ MATERIAL PVC VOLTAGE RATING 250/450V AMPERE RATING 21 Amps

Flexible cables, or 'continuous-flex' cables, are electrical cables specially designed to cope with the tight bending radii and physical stress associated with moving applications, such as inside cable carriers.

2.5 mm² Single Core Copper/Std Up to 7 Marla house we recommend 2.5 mm² s/core standard cable for house wiring. Over the time our devices are shifting to smart energy saving than why we are not redesigning our Wires and cables. We spent more when we can fulfil our need with less amount. 2.5 mm²″ is commonly used in house, offices and building for room wiring. You may not compromise on the quality this cable as performance of all your equipment, devices and appliances depends on 3/.029″. Similarly, it’s like a chain reaction you must have premium copper cables in your whole structure to get an uninterruptible current flow without any loss of voltage. Stable voltage provides you the best ampere rating which reduces your electricity bill.

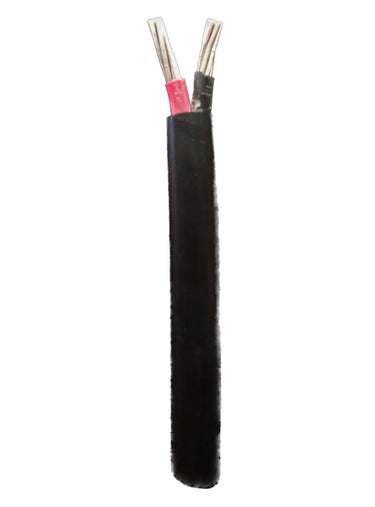

The 25 mm² 2-core aluminum/standard cable offers a dependable and cost-effective solution for diverse power distribution applications. With its high-quality construction, adherence to industry standards, and reliable performance characteristics, this cable ensures efficient and safe operation in various environments, contributing to the stability and reliability of electrical systems.
